Date: June 2021
Keywords: UV sterilizer
Customer Background: Guangdong XX Environmental Protection Equipment Co., Ltd. is a comprehensive environmental protection engineering company with a large number of engineering achievements in industrial ultrapure water systems (such as semiconductor, microelectronics, LCD and other industries), wastewater treatment and concentration evaporation zero emissions, exhaust gas treatment, solar thermal utilization (air energy, solar hot water), photovoltaic utilization and other industries.
Facing problems:
1. Excessive organic matter in water bodies
2. The effluent quality does not meet the standard
Solution:
1. Install a TOC remover at the outlet
2. Install a UV sterilizer at the end of the water tank
Case picture of UV sterilizer:

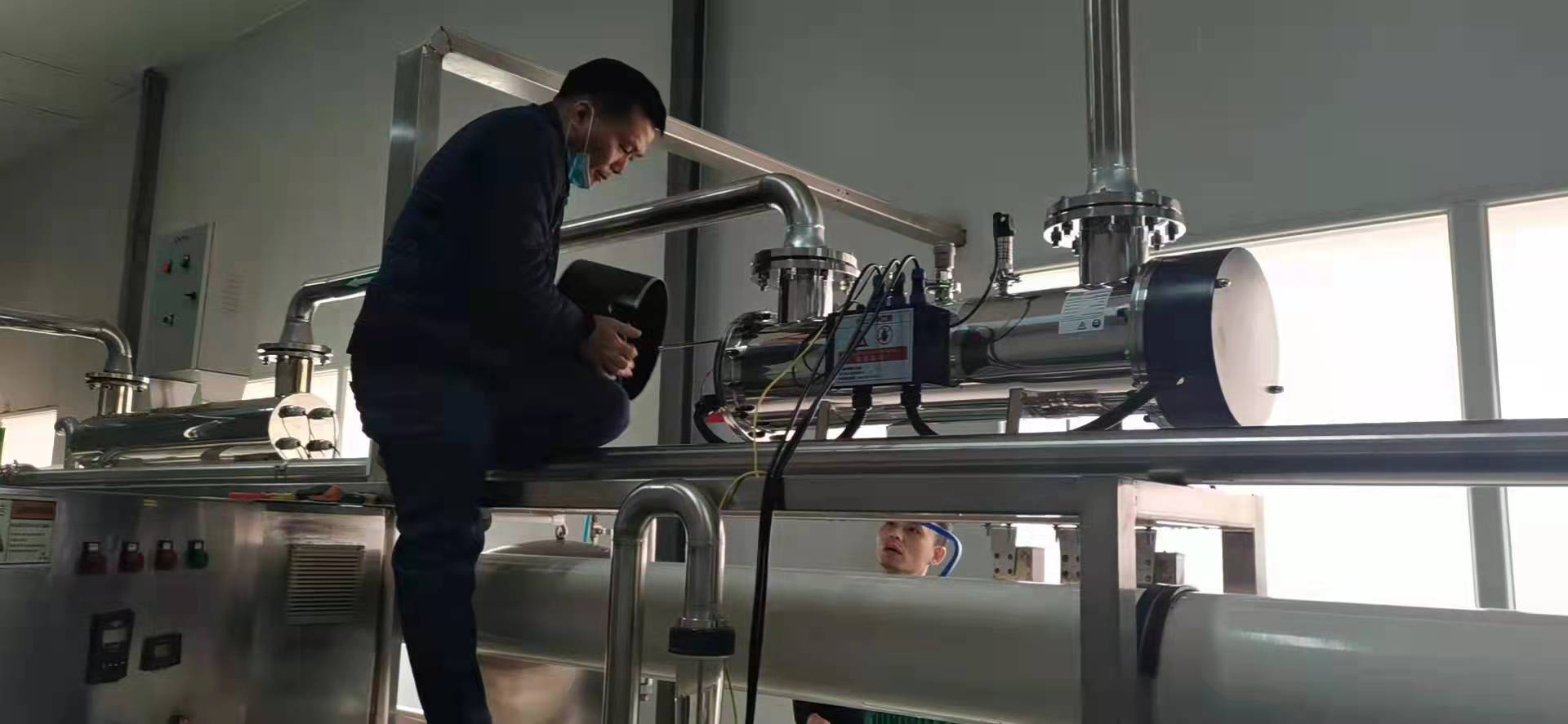

On site installation pictures of UV sterilizer
The functions of UV sterilizer and TOC remover:

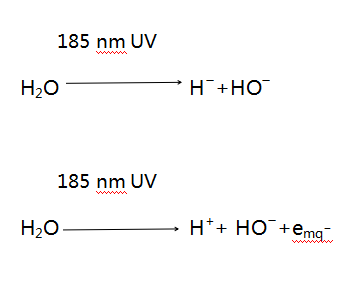

TOC stands for Total Organic Carbon. The TOC remover uses 185nm ultraviolet light to directly irradiate water, causing a water splitting reaction and producing active intermediates HO -, H -, and eaq (hydrated electrons). These active intermediates then undergo electrophilic, nucleophilic, or electron transfer reactions with organic matter in water, leading to the degradation and mineralization of organic matter in water, thereby reducing the concentration of TOC. The reaction equation is as follows:
The UV sterilizer uses 274nm ultraviolet light to directly irradiate the water body, which can basically kill all bacteria, viruses, and algae in the water, thus purifying the water quality. In addition, due to the characteristics of instantaneous sterilization, no residue, and no secondary pollution, UV sterilizers are the best choice for water treatment disinfection and sterilization.
Project completion: After assisting the client in installing the UV ultraviolet sterilizer and TOC remover, operational testing and water quality inspection were conducted, and the results showed that the water quality met the standards. This result surprised the customer greatly and they trusted us very much. In the following months, they gradually approached our company to customize more than ten UV sterilizers. In addition, they also introduced a familiar engineering company to cooperate with us, and the cooperation between the two sides was very harmonious!
